Anngling Techniocs MK1 / MK2 / Mk3 / HD Lithium Bait Boat Battery Bundle

We are proud to offer a complete charging and power solution for Angling Technics Microcat MK1, MK2, MK3, and HD models.

Bundle Includes:

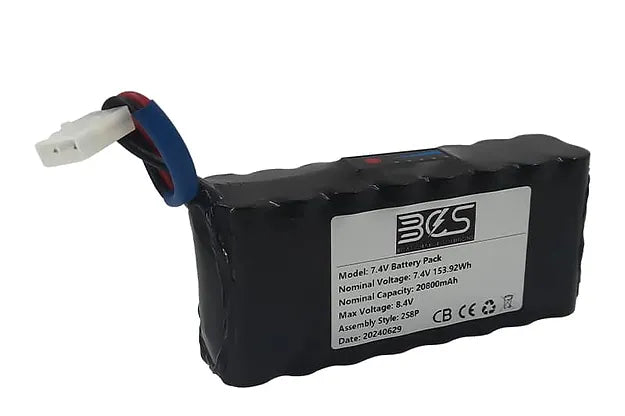

• 2 × 20800mAh Lithium Batteries (Tamiya connectors)

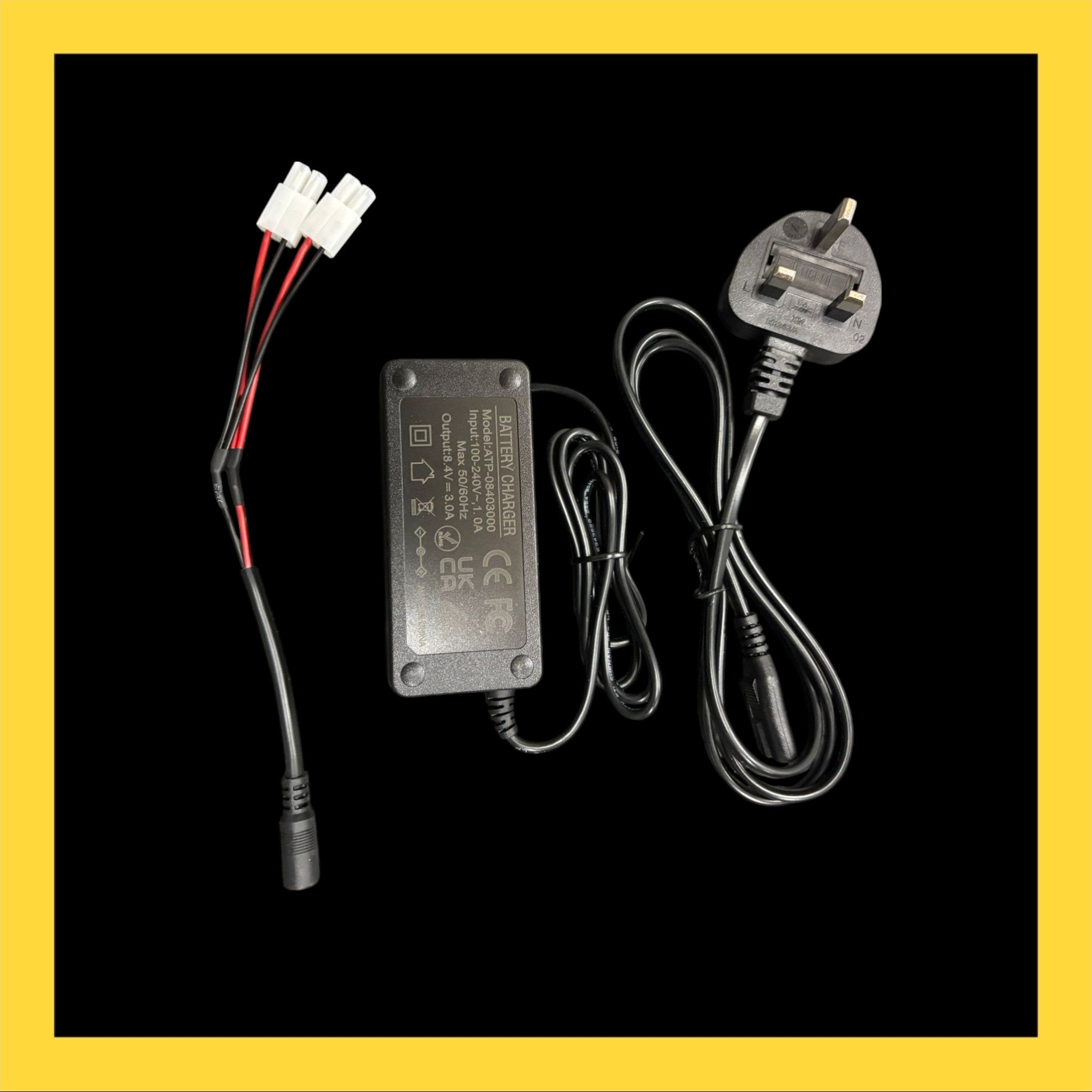

• 1 × 8.4V 3A Lithium-Ion Charger (with standard barrel connector)

• 1 × Splitter Cable (charge both batteries at the same time)

• 1 × LiPo Charging Safety Bag

• 1 × Instruction Sheet

Key Features:

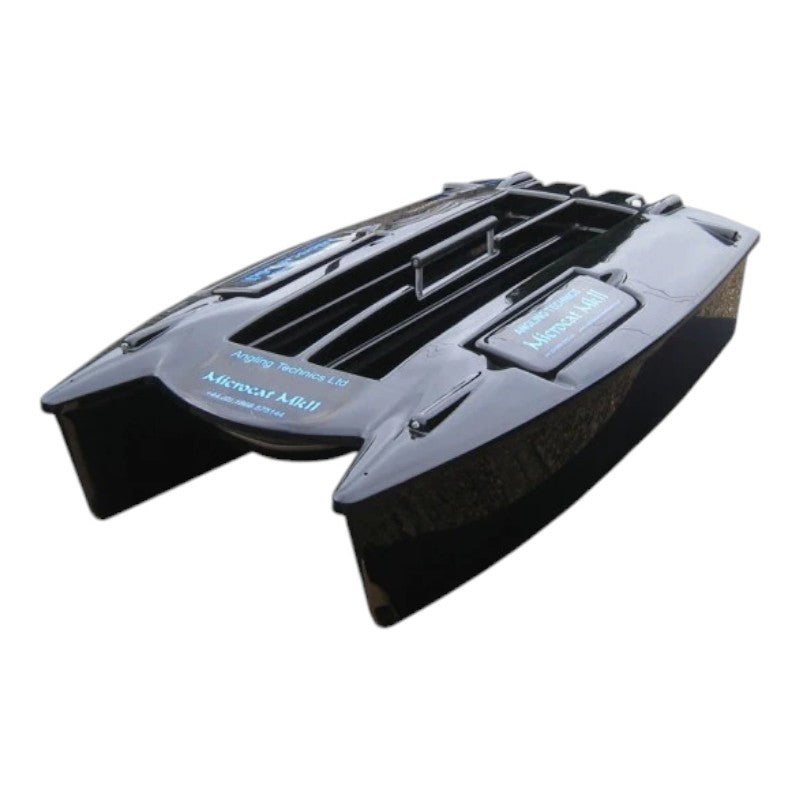

Angling Technics Bundle — designed specifically for Microcat MK1, MK2, MK3, and HD models

Powerful Endurance: 20800mAh capacity for up to 4–5 hours of continuous use

Safe Charging: Fire-resistant LiPo bag included

Fast Dual Charging: Splitter cable charges two batteries simultaneously

Top Quality Cells: Built with premium 2S8P branded 18650 lithium-ion cells

Battery Management System (BMS): Protects against overcharge, over-discharge, and short circuits

• Reliable Connectors: Tamiya connectors fitted as standard

• 1 Year Warranty: Full peace of mind

Charging Instructions:

1. Plug the charger into a mains outlet.

2. Attach the splitter cable to the charger's silver and black connector.

3. Carefully connect the Tamiya plugs to each battery.

4. Place both batteries inside the LiPo Safe Bag.

5. Seal the bag securely before starting the charge.

6. Monitor the charging process at all times — do not leave batteries unattended or charge overnight.

7. Charging will take approximately 12–13 hours for a full charge.

8. 🔴 Red Light: Charging in progress
   🟢 Green Light: Fully charged

Note: It is normal for the charger to become warm during use as it conducts electricity.

Technical Specifications:

• Cell Type: High-rated branded 18650 lithium-ion cells

• Configuration: 2S8P (2 cells in series, 8 in parallel)

• Nominal Voltage: 7.4V

• Capacity: 20.8Ah each battery

• Run Time: 4–5 hours per charge (depending on conditions)
